Premium Open Frame Monitorsfor Industrial Applications
Tailored Solutions for Diverse Industrial Environments, size avilable:7"10.1".10.4",12.1"13.3",14",15",15.6",17",18.5",19".21.5",23.8",27",32",43".
What is an Open Frame Monitor ?
An open frame touch monitor is a display device that integrates a touch-sensitive screen with an open frame design, allowing for easy customization and seamless integration into various industrial and commercial applications. Unlike standard monitors, open frame monitors are designed to be embedded into custom enclosures, kiosks, industrial machinery, and other equipment.

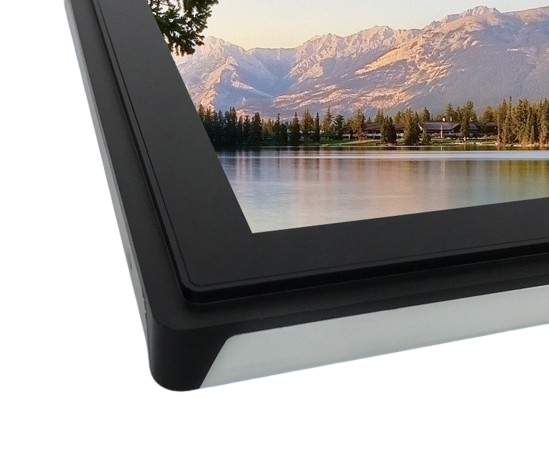

Our open frame touch monitors feature a stepped design that ensures the screen can perfectly align with the customer’s panel, creating a smooth, flush surface. This design enhancement not only improves the aesthetic appeal but also facilitates easier cleaning and maintenance, making it ideal for environments where hygiene is paramount.
Benefits of our Open Frame Touch Monitors
About Our Open Frame Monitors
Eagle Touch offers premium Open Frame Monitors designed for various industrial applications. Our monitors are customizable to meet your specific needs, ensuring durability and high performance in any environment. Key features include:
- Rugged and durable design
- High-resolution displays
- Touchscreen capabilities
- Wide temperature range operation
Applications
Our Open Frame Monitors are ideal for use in:

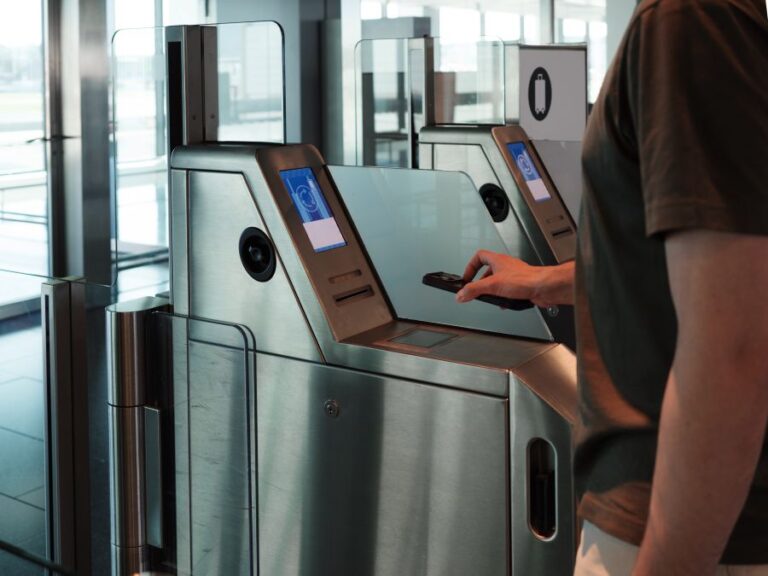

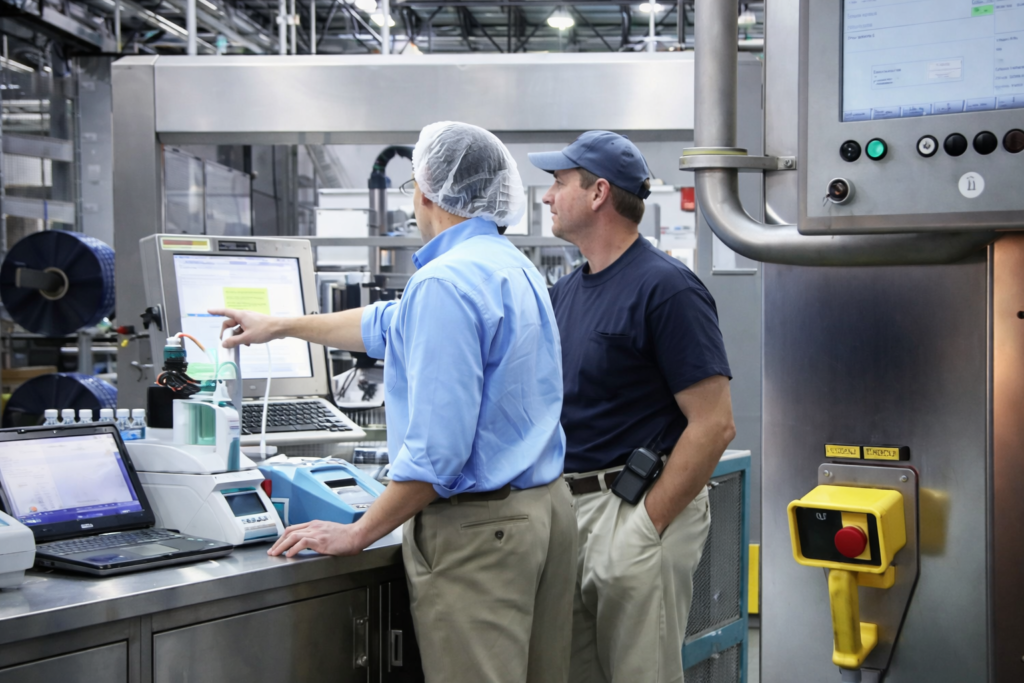

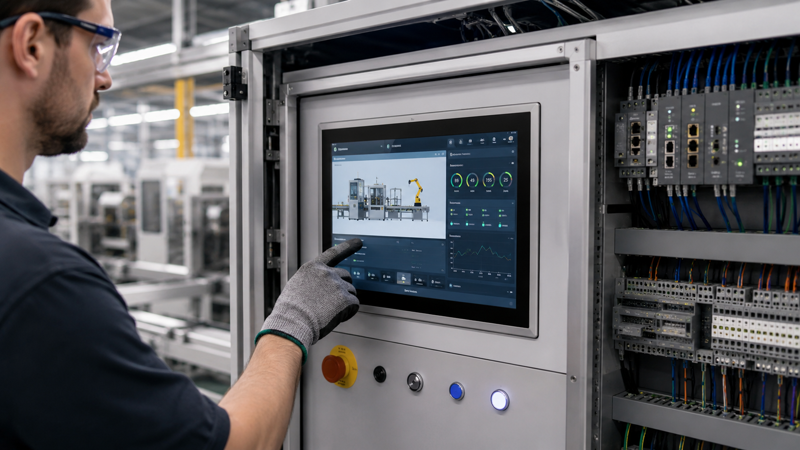

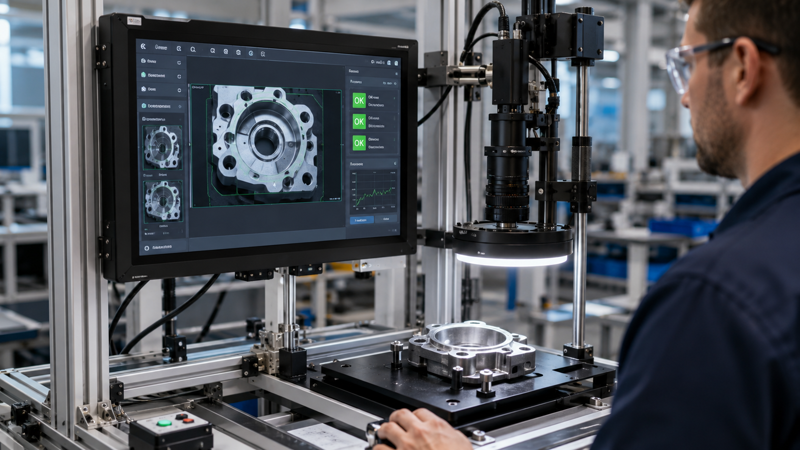

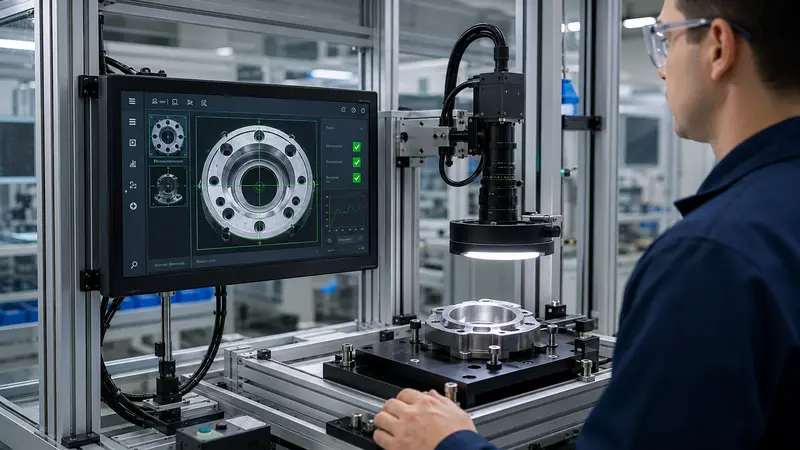

Industrial automation

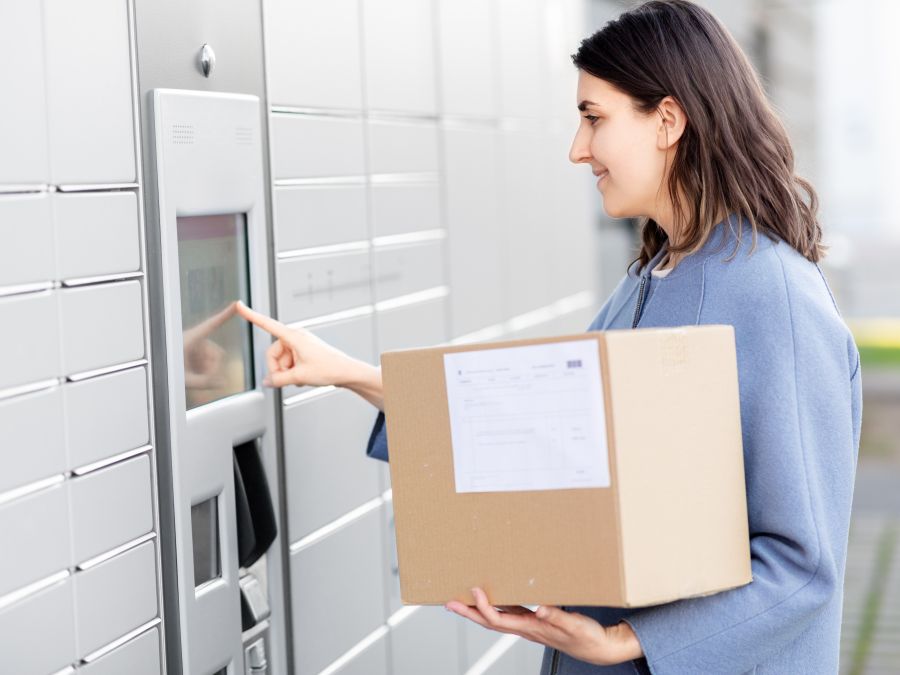

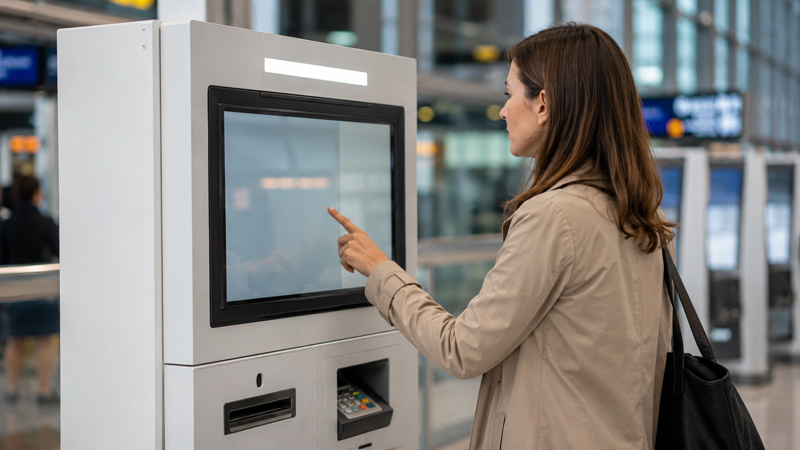

Kiosks and interactive displays
Transportation and logistics

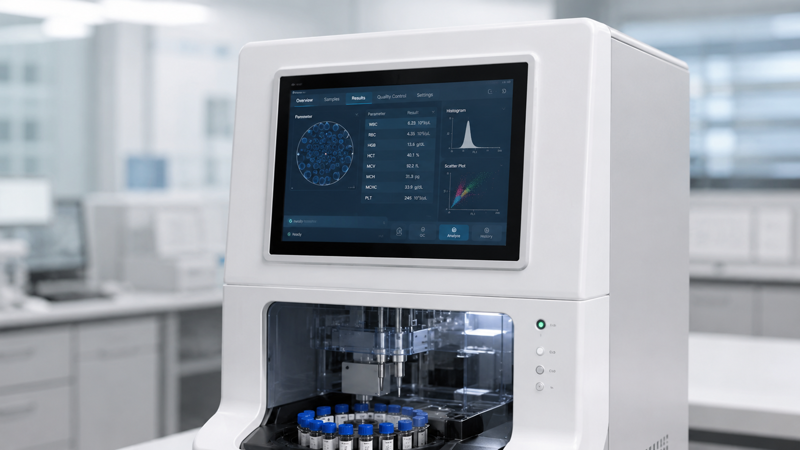

Medical devices

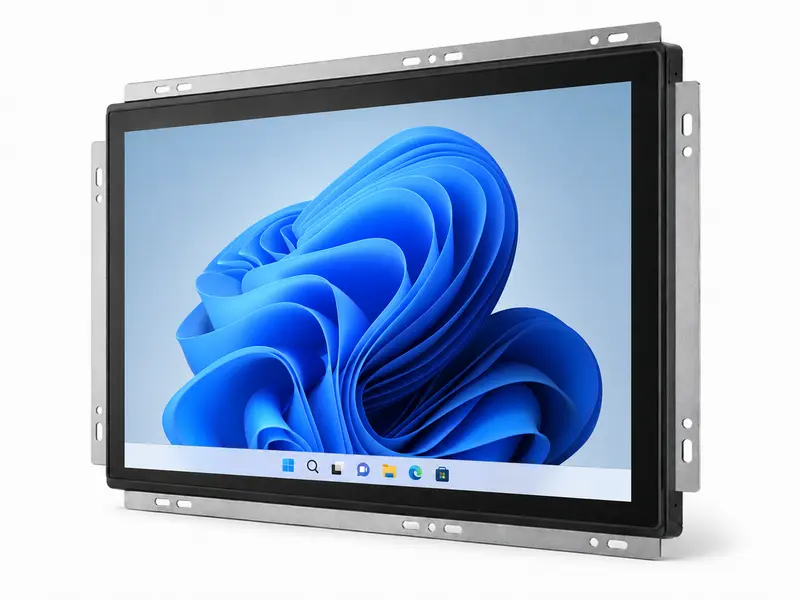

Our Standard Open Frame Monitor
Explore our selection of standard open frame monitors by reviewing the table below, or click here for a detailed overview. Our comprehensive range is designed to meet a variety of integration needs, ensuring seamless incorporation into your equipment or enclosure.

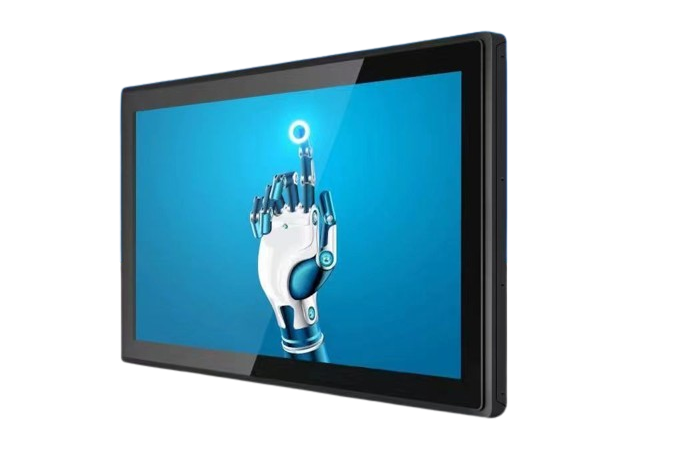

ETT101OP003
- 10.1" Open Frame Touch Monitor with PCAP Touch screen, 1280×800 resolution,
- 350nit brightness (600nits/1000nits for option)
- VGA+HDMI interface,
- -20 to 70 working temperature,
- IP65 Front panel.
- VESA and side brackets mounting
ETT121TCOPA00
- 12.1" Open Frame Touch Monitor with PCAP Touch screen, 1280*800 resolution,
- 300nit brightness (500nits/1000nits for option)
- VGA+HDMI interface,
- -20 to 70 working temperature,
- IP65 Front panel.
- VESA and side brackets mounting
ETT133TCOPA00
- 13.3" Open Frame Touch Monitor with PCAP Touch screen, 1920*1080 resolution,
- 300nit brightness (500nits/1000nits for option)
- VGA+HDMI interface,
- 0 to 50 working temperature,
- IP65 Front panel.
- VESA and side brackets mounting
ETT150TCOPA00
- 15" Open Frame Touch Monitor with PCAP Touch screen, 1024*768 resolution,
- 350nit brightness (500nits/1000nits for option)
- VGA+HDMI interface,
- -20 to 70 working temperature,
- IP65 Front panel.
- VESA and side brackets mounting
ETT156TNOPA01
- 15.6" Open Frame Touch Monitor with PCAP Touch screen, 1920*1080 resolution,
- 250nit brightness (500nits/1000nits for option)
- VGA+HDMI interface,
- -20 to 70 working temperature,
- IP65 Front panel.
- VESA and side brackets mounting
ETT170TCOPA00
- 17" Open Frame Touch Monitor with PCAP Touch screen, 1280*1024 resolution,
- 250nit brightness (500nits/1000nits for option)
- VGA+HDMI interface,
- -20 to 70 working temperature,
- IP65 Front panel.
- VESA and side brackets mounting
ETT185OP001
- 18.5" Open Frame Touch Monitor with PCAP Touch screen, 1366*768 resolution,
- 250nit brightness (500nits/1000nits for option)
- VGA+HDMI interface,
- -0 to 50 working temperature,
- IP65 Front panel.
- VESA and side brackets mounting
ETT190TCOPA01
- 19" Open Frame Touch Monitor with PCAP Touch screen, 1280*1024 resolution,
- 250nit brightness (500nits/1000nits for option)
- VGA+HDMI interface,
- -20 to 70 working temperature,
- IP65 Front panel.
- VESA and side brackets mounting
ETT215TCOPA00
- 21.5" Open Frame Touch Monitor with PCAP Touch screen, 1920*1080 resolution,
- 250nit brightness (500nits/1000nits for option)
- VGA+HDMI interface,
- -0 to 50 working temperature,
- IP65 Front panel.
- VESA and side brackets mounting
ETT238TCOPA00
- 23.8" Open Frame Touch Monitor with PCAP Touch screen, 1920*1080 resolution,
- 250nit brightness (500nits/1000nits for option)
- VGA+HDMI interface,
- -0 to 50 working temperature,
- IP65 Front panel.
- VESA and side brackets mounting
ETT270TCOPA00
- 27" Open Frame Touch Monitor with PCAP Touch screen, 1920*1080 resolution,
- 300nit brightness (500nits/1000nits for option)
- VGA+HDMI interface,
- -0 to 50 working temperature,
- IP65 Front panel.
- VESA and side brackets mounting
ETT320TCOPA00
- 32" Open Frame Touch Monitor with PCAP Touch screen, 1920*1080 resolution,
- 400nit brightness (500nits/1000nits for option)
- VGA+HDMI interface,
- -0 to 50 working temperature,
- IP65 Front panel.
- VESA and side brackets mounting
Contact us today to discuss your specific requirements and get a customized solution that fits your needs.
How open Frame monitor is installed
Installing an open frame touch monitor is straightforward and customizable. Here’s a concise guide:
Preparation
- Select the Location: Ensure the area is clean and spacious.
- Gather Tools: Have screwdrivers, mounting brackets, and screws ready.

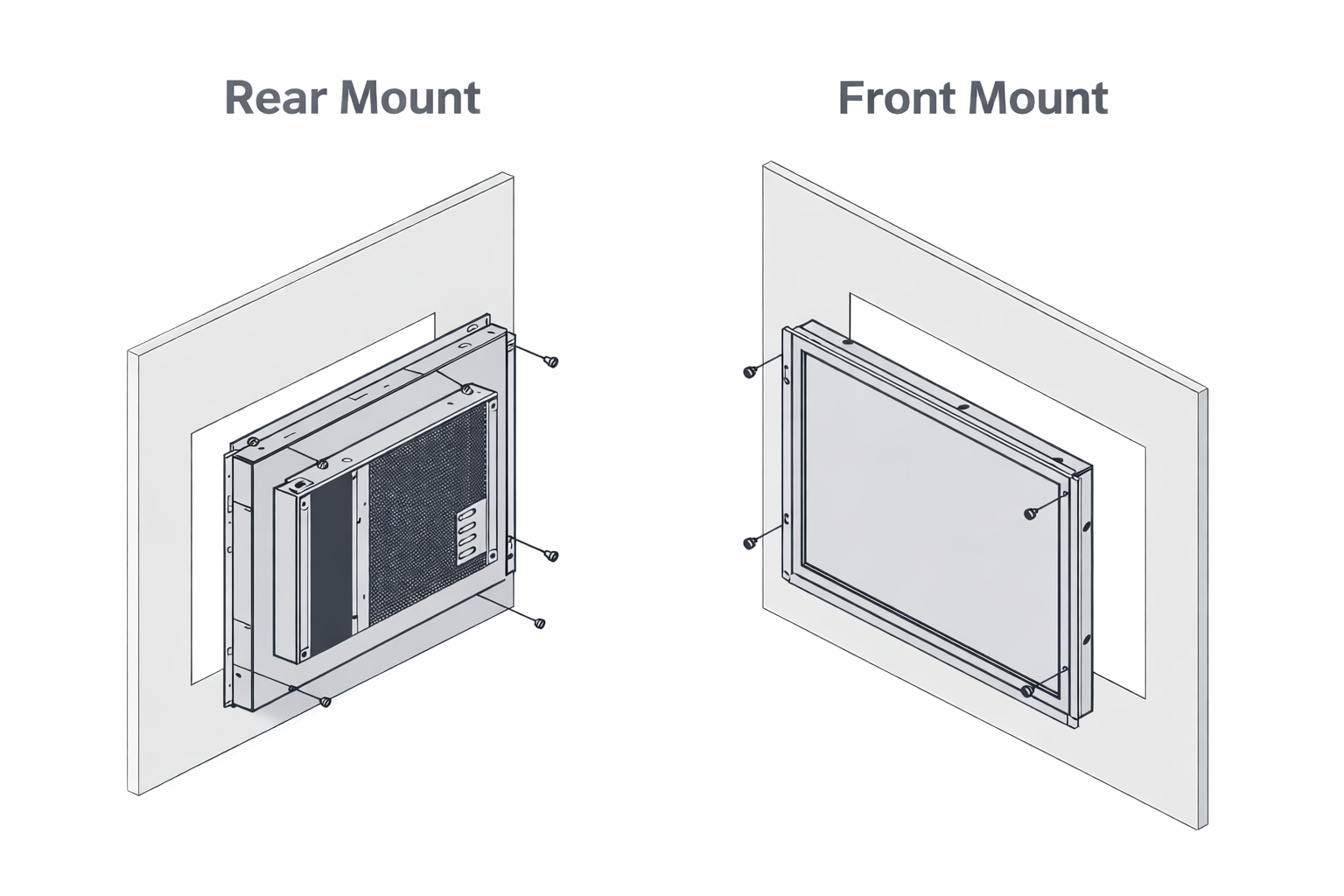

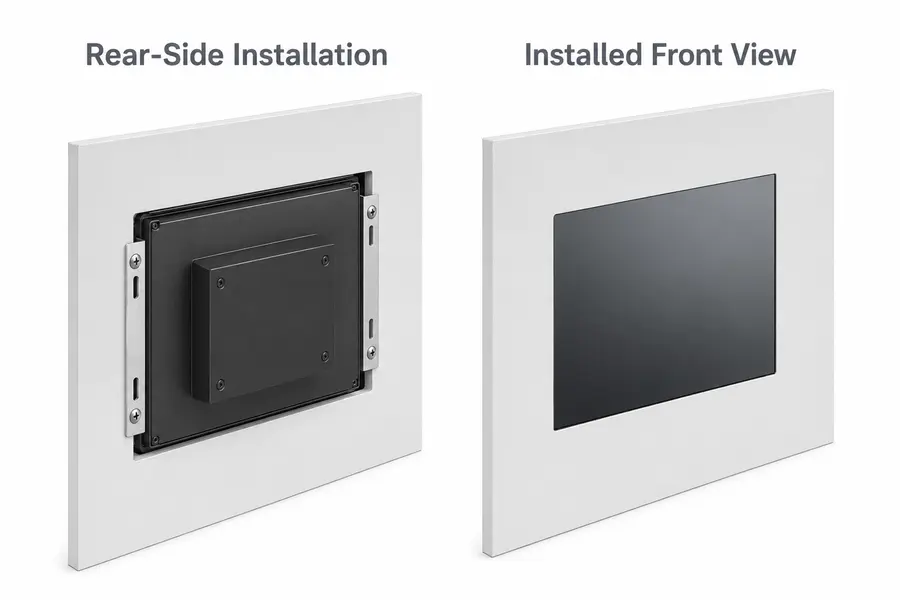

Mounting the Monitor
- Align the Monitor: Place it into the custom enclosure, kiosk, or machinery.
- Secure the Monitor: Use mounting brackets and screws to fix it in place.
Connecting the Cables
- Power Cable: Connect to a power source.

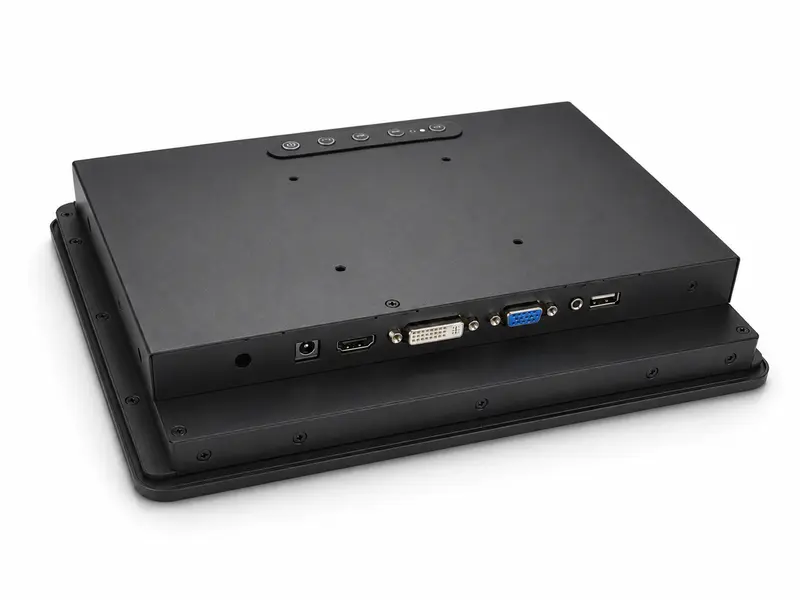

- Data Cables: Connect VGA, HDMI, DVI, or USB cables securely.
- Touchscreen Interface: Connect the USB or serial cable for touch functionality.
Testing and Final Adjustments
- Power On: Ensure the monitor displays correctly and touch functionality works.
- Adjust Settings: Modify brightness, contrast, and resolution as needed.
- Check Alignment: Ensure the screen is flush with the panel.
Maintenance
- Regularly clean the screen and check connections to ensure efficient operation. The stepped design ensures a flush surface, making cleaning easier and maintaining hygiene.
Considerations Before Purchase
an open frame Monitor
Display Size & Resolution
Depending on the application, determine the ideal screen size and resolution. as well as the brightness.

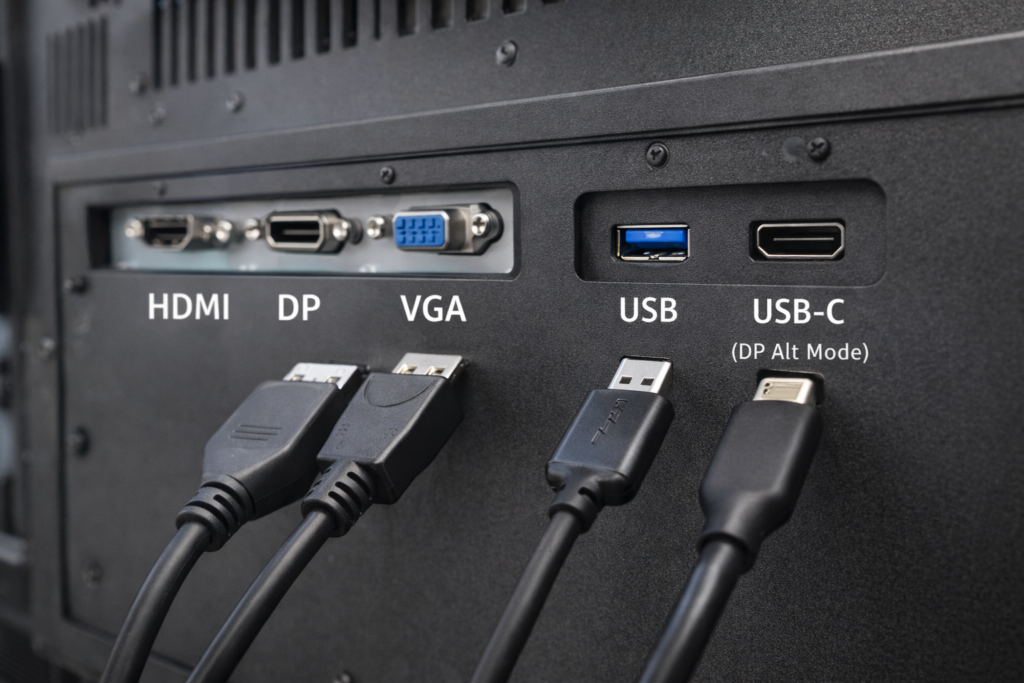

Input/Output Ports:
Make sure the monitor supports all required input and output interfaces.

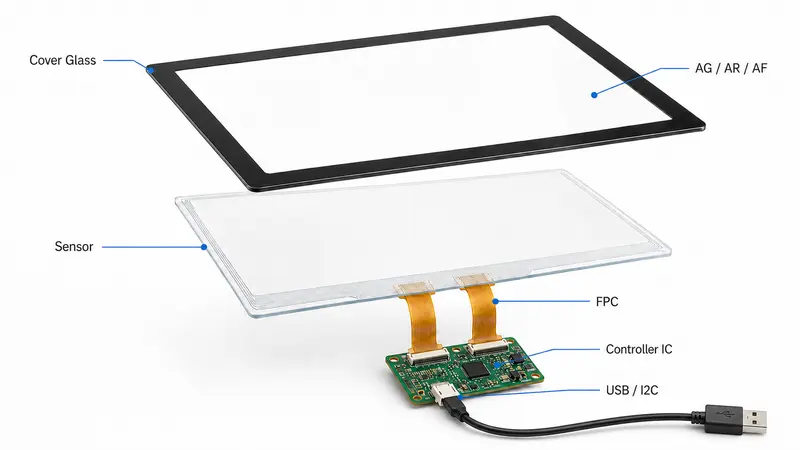

Touch Technology
If the monitor is with a touchscreen, understand the type of touch technology used (e.g., capacitive, resistive).
Customization Options

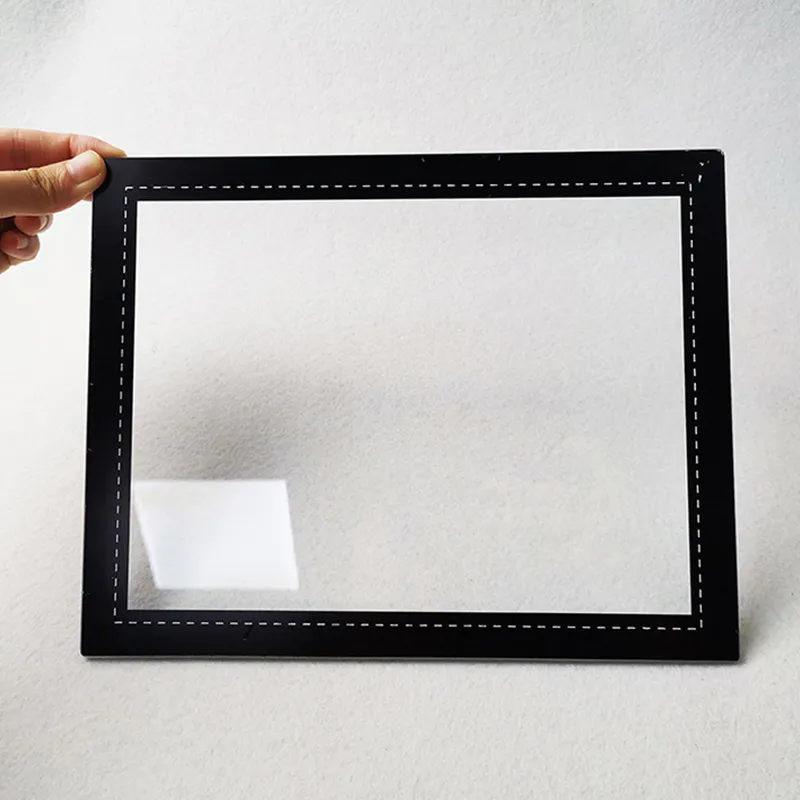

Frame Material: Metal or plastic frames based on environmental conditions. Screen Coating: Anti-glare, anti-reflective, or other specialized coatings based on usage.
Quality and Reliability
Durability: Consider ruggedness standards (e.g., IK10) if the monitor will be used in tough environments. Certifications: Look for industry-standard certifications for reliability and safety.
Compatibility
Software: Ensure the monitor is compatible with the software platforms used in your operations. Hardware: Make sure the monitor can integrate seamlessly with existing hardware setups.
Frequently Asked Questions
Understanding Open Frame Monitor
What is an Open Frame Monitor?
Answer: An Open Frame Monitor refers to a display unit that comes without a fully enclosed casing or bezel, enabling it to be embedded into other hardware or customized setups. Typically, open frame monitors are highly versatile, offering mounting options like VESA, rear mount, or panel mount.
What is Open Frame Used For?
Answer: Open Frame Monitors are frequently used in various industrial applications, kiosks, ATMs, and specialized systems where integration into existing enclosures is necessary. They offer flexibility for designers and engineers to fit displays into custom cases, machinery, or control panels.
What is the Difference Between Open and Closed Frame?
Answer:
Open Frame
- No external housing; designed for integration.
- Highly customizable.
- Usually lacks protective features.
Closed Frame
- Comes in a fully enclosed case or bezel.
- Typically more durable and resistant to environmental factors.
- Less flexibility for customization.
What is a Zero Frame Design Monitor?
Answer:A zero-frame design monitor features an almost non-existent bezel, maximizing the display area. These monitors are ideal for multi-screen setups and offer a sleek, modern aesthetic.
What are the Three Types of Monitor Screens?
Answer:
- CRT (Cathode Ray Tube): Older technology, bulky, and consumes more power.
- LCD (Liquid Crystal Display): Slimmer design, lower power consumption, and good for various applications.
- OLED (Organic Light-Emitting Diodes): Offers deeper blacks and better viewing angles but is generally more expensive.
What is the Advantage of a Frameless Monitor?
Answer: A frameless monitor usually offers an edge-to-edge display, resulting in a more immersive visual experience. It is aesthetically pleasing and is ideal for multi-monitor setups due to minimized gaps between screens.
What are the Different Types of Monitor Frames?
Answer:
- Standard Frame: Traditional design with a noticeable bezel.
- Frameless: Minimal or no bezel, offering an edge-to-edge display.
- Zero Frame: Virtually no bezel; often mistaken for frameless but can still have a minimal edge.
What payment terms are generally accepted in this industry?
Answer: In the industry, common payment terms include T/T in advance, and depending on the business agreement and order volume, other payment methods such as L/C might be accepted.
