INDUSTRIAL PANEL PC · STANDARD MODELS · OEM READY

Standard Industrial Panel PC Models

Compare standard industrial panel PCs for machine HMI, factory automation, control cabinets, industrial kiosks, and OEM equipment. Review available screen sizes, processor platforms, touch options, I/O configurations, and mounting structures before requesting a quotation.

Factory Direct Standard Models Available PCAP / Resistive Touch OEM Configuration Review Repeat Production Support

Browse available standard industrial panel PC models for machine HMI, factory automation, control cabinets, industrial kiosks, production equipment, and OEM systems. These models are based on existing screen sizes, enclosures, mounting structures, and motherboard platforms, helping shorten sample evaluation and integration time.

This page is mainly for model selection and quotation. For projects requiring a customer-specified motherboard, special I/O layout, custom enclosure, branding, system image preparation, or software preload, please visit our custom industrial panel PC solutions.

AVAILABLE MODELS

Standard Industrial Panel PC Models

Browse available models by screen size and review the listed display, processor, touch, memory, storage, and I/O options. Select a model to confirm the available configuration, operating system support, mechanical drawing, lead time, and quotation with our team.

industrial panel pc

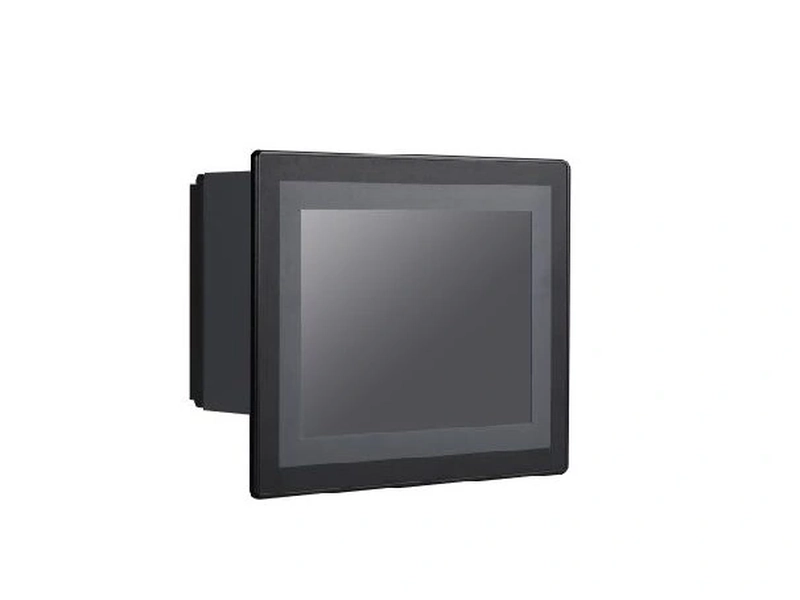

ET-080TPC-AF

8″ Fanless Industrial Panel PC

8" Panel PC Panel Mount VESA
  • Size: 8"
  • Resolution: 1024 × 768
  • Brightness: 250 nits
  • CPU: Intel® Celeron® J1900 processor
  • Memory: Up to 8 GB DDR3L RAM
  • Storage: 1 × mSATA Slot
  • Touch: 5-Wire Resistive Touch
  • Operating System: Windows 7/8.1/10, WES7, Linux
  • I/O: 2 × LAN, 4 × USB, 3 × COM
  • Power Input: DC 12V
  • Mounting Type: Panel Mount / VESA Mount
  • Front Protection: Front IP65
  • Cooling Design: Fanless
  • Operating Temperature: 0°C to +50°C
panel pc

ET-121TPC-CE

12.1" Industrial Panel PC

12.1" Panel PC Embedded Panel Mount VESA
  • Size: 12.1"
  • Resolution: 1024 × 768
  • Brightness: 350 nits
  • CPU: Intel® Celeron® J6412
  • Optional Platforms: Intel® Core™ i3 / i5 / i7
  • Memory: 4 GB / 8 GB / 16 GB / 32 GB DDR4 RAM
  • Storage: 1 × M.2 Key M Slot, supports 2242/2260/2280 SATA SSDs
  • Touch: PCAP Touch / 5-Wire Resistive Touch
  • Operating System: Windows 10/11 or Linux
  • I/O: 1 × HDMI, 2 × LAN, 4 × USB 3.0, 1 × Audio, 3 × COM
  • Power Input: DC 12 V
  • Mounting Type: Panel Mount / VESA Mount
  • Front Protection: Front IP65
  • Cooling Design: Fanless
  • Operating Temperature: 0°C to +50°C
Industrial panel pc IP67

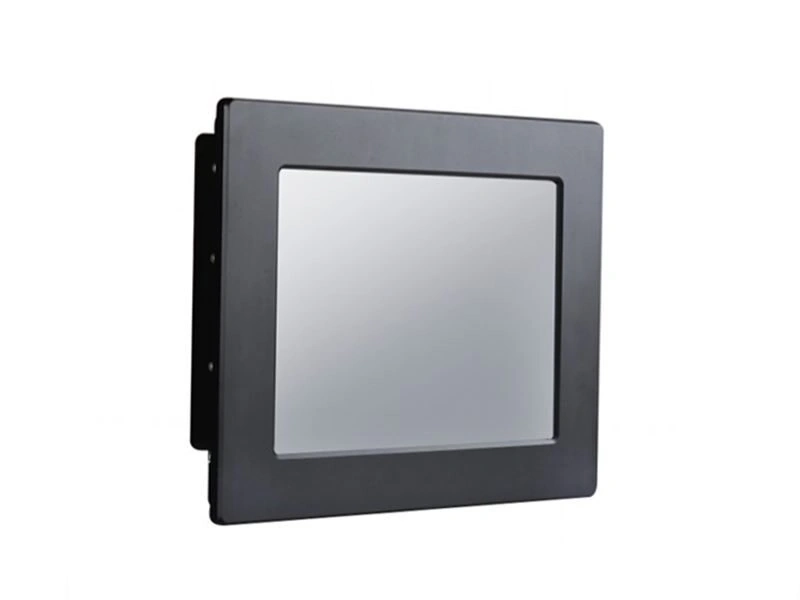

ET-121TPC-HD

12.1" Full IP67 Industrial Panel PC

12.1" Panel PC Panel Mount VESA
  • Size: 12.1"
  • Resolution: 1024 × 768
  • Brightness: 450 nits
  • CPU: Intel® Celeron® J1900 processor
  • Optional Platforms: Intel® Core™ i3 / i5
  • Memory: Up to 8 GB DDR3L RAM
  • Storage: 1 × mSATA Slot
  • Touch: 5-Wire Resistive Touch
  • Operating System: Windows 7/8.1/10, WES7, Linux
  • I/O: 1 × LAN, 4 × USB, 3 × COM
  • Power Input: DC 12 V
  • Mounting Type: Panel Mount / VESA Mount
  • Protection: Full IP67
  • Cooling Design: Fanless
  • Operating Temperature: -10°C to +50°C
industrial panel pc

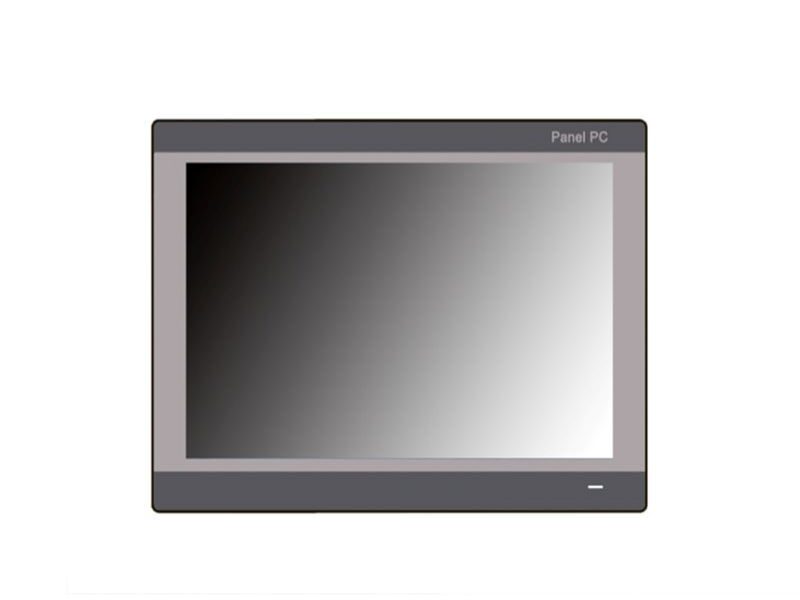

ET-133TPC-CE

13.3" Embedded Panel PC

13.3" Panel PC Embedded Panel Mount VESA
  • Size: 13.3"
  • Resolution: 1280 × 800
  • Brightness: 330 nits
  • CPU: Intel® Celeron® J6412
  • Optional Platforms: Intel® Core™ i3 / i5 / i7
  • Memory: 4 GB / 8 GB / 16 GB / 32 GB DDR4 RAM
  • Storage: 1 × M.2 Key M Slot, supports 2242/2260/2280 SATA SSDs
  • Touch: PCAP Touch / 5-Wire Resistive Touch
  • Operating System: Windows 10/11 or Linux
  • I/O: 1 × HDMI, 2 × LAN, 4 × USB 3.0, 1 × Audio, 3 × COM
  • Power Input: DC 12 V
  • Mounting Type: Panel Mount / VESA Mount
  • Front Protection: Front IP65
  • Cooling Design: Fanless
  • Operating Temperature: 0°C to +50°C
touch pc

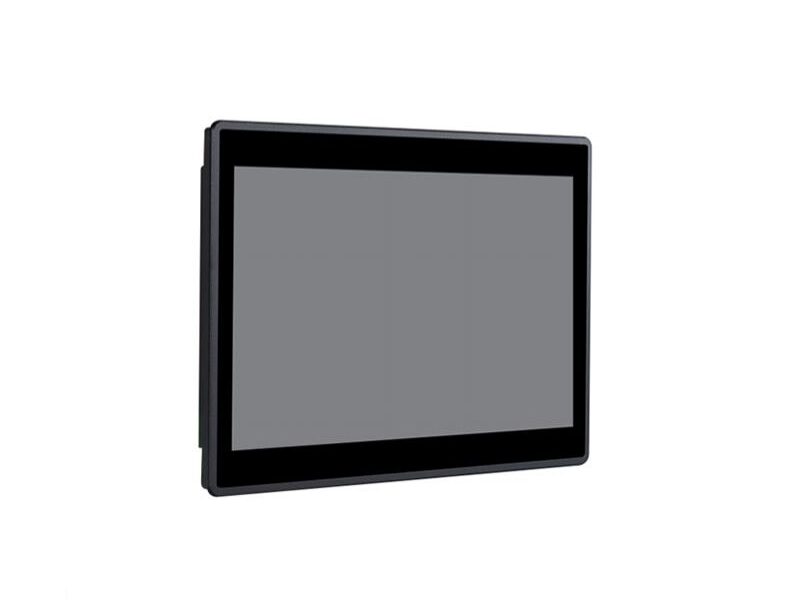

ET-140TPC-B

14" Industrial Panel PC

14” Panel PC Embedded Panel Mount VESA
  • Size: 14“
  • Resolution: 1920 × 1080
  • Brightness: 250 nits
  • CPU: Intel® Celeron® J6412
  • Optional Platforms: Intel® Core™ i3 / i5 / i7
  • Memory: 4 GB / 8 GB / 16 GB / 32 GB DDR4 RAM
  • Storage: 1 × M.2 Key M Slot, supports 2242/2260/2280 SATA SSDs
  • Touch: PCAP Touch / 5-Wire Resistive Touch
  • Operating System: Windows 10/11 or Linux
  • I/O: 1 × HDMI, 2 × LAN, 4 × USB 3.0, 1 × Audio, 3 × COM
  • Power Input: DC 12 V
  • Mounting Type: Panel Mount / VESA Mount
  • Front Protection: Front IP65
  • Cooling Design: Fanless
  • Operating Temperature: 0°C to +50°C
industrial panel pc

ET-150TPC-CE

15" Fanless Industrial Panel PC

15" Panel PC Embedded Panel Mount VESA
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 350 nits
  • CPU: Intel® Celeron® J6412
  • Optional Platforms: Intel® Core™ i3 / i5 / i7
  • Memory: 4 GB / 8 GB / 16 GB / 32 GB DDR4 RAM
  • Storage: 1 × M.2 Key M Slot, supports 2242/2260/2280 SATA SSDs
  • Touch: PCAP Touch / 5-Wire Resistive Touch
  • Operating System: Windows 10/11 or Linux
  • I/O: 1 × HDMI, 2 × LAN, 4 × USB 3.0, 1 × Audio, 3 × COM
  • Power Input: DC 12 V
  • Mounting Type: Panel Mount / VESA Mount
  • Front Protection: Front IP65
  • Cooling Design: Fanless
  • Operating Temperature: 0°C to +50°C
panel pc

ET-156TPC-CE

15.6″ Fanless Industrial Touch Panel PC

15.6" Panel PC Embedded Panel Mount VESA
  • Size: 15.6"
  • Resolution: 1920 × 1080
  • Brightness: 250 nits
  • CPU: Intel® Celeron® J6412
  • Optional Platforms: Intel® Core™ i3 / i5 / i7
  • Memory: 4 GB / 8 GB / 16 GB / 32 GB DDR4 RAM
  • Storage: 1 × M.2 Key M Slot, supports 2242/2260/2280 SATA SSDs
  • Touch: PCAP Touch / 5-Wire Resistive Touch
  • Operating System: Windows 10/11 or Linux
  • I/O: 1 × HDMI, 2 × LAN, 4 × USB 3.0, 1 × Audio, 3 × COM
  • Power Input: DC 12 V
  • Mounting Type: Panel Mount / VESA Mount
  • Front Protection: Front IP65
  • Cooling Design: Fanless
  • Operating Temperature: 0°C to +50°C
industrial panel pc

ET-170TPC-C

17" Fanless Industrial Touch Panel PC

17" Panel PC Embedded Panel Mount VESA
  • Size: 17"
  • Resolution: 1280 × 1024
  • Brightness: 250 nits
  • CPU: Intel® Celeron® J6412
  • Optional Platforms: Intel® Core™ i3 / i5 / i7
  • Memory: 4 GB / 8 GB / 16 GB / 32 GB DDR4 RAM
  • Storage: 1 × M.2 Key M Slot, supports 2242/2260/2280 SATA SSDs
  • Touch: PCAP Touch / 5-Wire Resistive Touch
  • Operating System: Windows 10/11 or Linux
  • I/O: 1 × HDMI, 2 × LAN, 4 × USB 3.0, 1 × Audio, 3 × COM
  • Power Input: DC 12 V
  • Mounting Type: Panel Mount / VESA Mount
  • Front Protection: Front IP65
  • Cooling Design: Fanless
  • Operating Temperature: 0°C to +50°C
industrial panel pc

ET-190TPC-CE

19″ 5:4 Industrial Touch Panel PC

19" Panel PC Embedded Panel Mount VESA
  • Size: 19"
  • Resolution: 1280 × 1024
  • Brightness: 250 nits
  • CPU: Intel® Celeron® J6412
  • Optional Platforms: Intel® Core™ i3 / i5 / i7
  • Memory: 4 GB / 8 GB / 16 GB / 32 GB DDR4 RAM
  • Storage: 1 × M.2 Key M Slot, supports 2242/2260/2280 SATA SSDs
  • Touch: PCAP Touch / 5-Wire Resistive Touch
  • Operating System: Windows 10/11 or Linux
  • I/O: 1 × HDMI, 2 × LAN, 4 × USB 3.0, 1 × Audio, 3 × COM
  • Power Input: DC 12 V
  • Mounting Type: Panel Mount / VESA Mount
  • Front Protection: Front IP65
  • Cooling Design: Fanless
  • Operating Temperature: 0°C to +50°C
panel pc

ET-191TPC-C

19.1″ Widescreen Industrial Touch Panel PC

19" Panel PC Embedded Panel Mount VESA
  • Size: 19"
  • Resolution: 1920 × 1080
  • Brightness: 250 nits
  • CPU: Intel® Celeron® J6412
  • Optional Platforms: Intel® Core™ i3 / i5 / i7
  • Memory: 4 GB / 8 GB / 16 GB / 32 GB DDR4 RAM
  • Storage: 1 × M.2 Key M Slot, supports 2242/2260/2280 SATA SSDs
  • Touch: PCAP Touch / 5-Wire Resistive Touch
  • Operating System: Windows 10/11 or Linux
  • I/O: 1 × HDMI, 2 × LAN, 4 × USB 3.0, 1 × Audio, 3 × COM
  • Power Input: DC 12 V
  • Mounting Type: Panel Mount / VESA Mount
  • Front Protection: Front IP65
  • Cooling Design: Fanless
  • Operating Temperature: 0°C to +50°C
panel pc

ET-215TPC-CE

21.5" Industrial Touch Panel PC

21.5" Panel PC Embedded Panel Mount VESA
  • Size: 21.5"
  • Resolution: 1920 × 1080
  • Brightness: 250 nits
  • CPU: Intel® Celeron® J6412
  • Optional Platforms: Intel® Core™ i3 / i5 / i7
  • Memory: 4 GB / 8 GB / 16 GB / 32 GB DDR4 RAM
  • Storage: 1 × M.2 Key M Slot, supports 2242/2260/2280 SATA SSDs
  • Touch: PCAP Touch / 5-Wire Resistive Touch
  • Operating System: Windows 10/11 or Linux
  • I/O: I/O: 1 × HDMI, 2 × LAN, 4 × USB 3.0, 1 × Audio, 3 × COM
  • Power Input: DC 12 V
  • Mounting Type: Panel Mount / VESA Mount
  • Front Protection: Front IP65
  • Cooling Design: Fanless
  • Operating Temperature: 0°C to +50°C

Processor, memory, storage, operating system, and I/O options depend on the selected motherboard platform. Changing the processor or motherboard may also affect the connector layout, rear enclosure depth, cooling design, power input, and driver support.

Not sure which model is suitable? Send us your application, required screen size, software platform, processor preference, I/O requirements, mounting method, and estimated quantity. We will help identify the closest available platform.

CONFIGURATION & RFQ REVIEW

What We Need to Recommend the Right Panel PC

A panel PC must fit both the equipment structure and the application software. The information below helps us check whether an existing model is suitable and which specifications must be confirmed before sample production.

Application & Software

  • Application, machine, or equipment type
  • HMI, SCADA, browser, database, or control software
  • Required Windows, Linux, or Android platform
  • Required drivers, peripherals, or communication protocols
  • Sample evaluation or production project

Display & Touch

  • Required screen size and resolution
  • PCAP or resistive touch requirement
  • Brightness and viewing-angle requirements
  • Glove, stylus, or water-operation requirements
  • Landscape or portrait installation

Processor & System

  • Required processor or software workload
  • RAM and storage capacity
  • Operating system version
  • System image or software preload requirement
  • Fanless operation or special thermal requirements

I/O & Mechanical Integration

  • LAN, USB, COM, RS232, RS485, or other I/O ports
  • Power input requirement
  • Panel cut-out and available installation space
  • Connector direction and rear clearance
  • Quantity, project stage, and target schedule

With these details, we can recommend a suitable industrial panel PC, confirm the available hardware configuration, identify potential integration issues, and provide a more accurate quotation.

STANDARD OR CUSTOM

Choose a Standard Model or Custom Panel PC

A standard model is the faster option when the existing enclosure, I/O layout, and hardware platform match your equipment. A custom solution is more suitable when the panel PC must be built around project-specific requirements.

Choose a Standard Model When

  • The existing front panel, enclosure, and cut-out are acceptable
  • The standard I/O layout matches the equipment
  • The available processor supports the application software
  • Faster sample evaluation is required
  • The approved platform can be used for future orders

Choose a Custom Panel PC When

  • A special enclosure, front panel, or cut-out is required
  • The I/O quantity, type, or connector position must change
  • A specified motherboard or processor platform is required
  • Branding, system image preparation, or software preload is needed
  • Special brightness, temperature, protection, or certification is required
View Custom Panel PC Solutions
FAQ

Standard Industrial Panel PC FAQ

Common questions about processor options, operating system support, mechanical integration, and future production orders.

Sometimes. Available processor options depend on the motherboard, cooling design, connector position, power requirements, and enclosure depth. The front panel and cut-out may remain unchanged, but the rear enclosure or I/O layout may need to be adjusted.

The approved motherboard, processor, memory, storage, touch controller, LCD, and I/O configuration can be recorded for future production. If a component becomes unavailable or reaches end of life, the proposed replacement will be reviewed before the next order is produced.

Operating system support depends on the selected processor, motherboard, drivers, peripherals, and application software. Windows and Linux options are available for compatible x86 platforms. Android must be confirmed separately with a suitable ARM platform.

Please provide the required screen size, resolution, touch type, processor or operating system preference, memory and storage, I/O ports, power input, mounting method, operating environment, target quantity, and project stage. A mechanical drawing or current equipment photo is also helpful.
